In today’s advanced digital world, APIs are the most used modern applications, with mobile apps fetching data to large-scale enterprise systems communicating across applications using microservices. Every millisecond is counted, and network reliability plays a critical role in delivering user-friendly features.
However, there are multiple factors, network communication is never perfect. Sometimes the server takes too long to respond, or the client and server connection is unstable. This is where two crucial timeout parameters come into play: Connection Timeout and Read Timeout.
Although these terms might sound similar, these two settings govern different stages of communication between a client and a server. Misconfiguring them can lead to sluggish performance, failed transactions, or unnecessary resource consumption.
In this article, we will explore everything you need to know about Connection Timeout vs Read Timeout, including what they are, how they differ, how to configure them in Java and REST APIs, and best practices to keep your applications efficient and fault-tolerant.
What Is a Timeout in HTTP and APIs?
A timeout is the maximum amount of time a client waits to get the response for a certain operation to complete before giving up.
When your application sends an HTTP request to a server, several steps occur:
- Establishing a TCP connection — the client must “handshake” with the server.
- Sending the HTTP request — headers and payload are transmitted.
- Waiting for the server to process the request — the backend logic runs.
- Receiving the server’s response — data is sent back to the client.
If any of these stages take longer than expected, the system triggers a timeout to prevent the request from hanging indefinitely.
Timeouts protect your application from unreliable network conditions, misconfigured servers, or infinite waiting loops that can freeze threads and reduce throughput.
Connection Timeout vs Read Timeout: The Key Difference
| Aspect | Connection Timeout | Read Timeout |
|---|---|---|
| Definition | The time limit to establish a connection between the client and server. | The time limit to wait for the server’s response after the connection is established. |
| Occurs When | During the initial handshake phase. | While waiting for the server to send back data. |
| Cause of Failure | Network issues, server unreachable, DNS failure. | Server is slow, overloaded, or stuck processing data. |
| Error Example | ConnectException: Connection timed out | SocketTimeoutException: Read timed out |
| Impact | No connection is made at all. | Connection exists, but response is delayed. |
| Best Fix | Check network connectivity or retry connection. | Optimize backend performance or increase timeout. |
In simpler terms:
- Connection Timeout is like waiting for someone to pick up the phone.
- Read Timeout is like waiting for them to answer your question once they’re already on the call.
1. Understanding Connection Timeout in Depth
What is Connection Timeout?
A Connection Timeout defines the maximum time your client will wait to establish a connection to the server. It covers the TCP handshake phase, where the client and server agree to communicate.
If this process takes too long, for instance, because the server is unreachable, the DNS is slow, or the internet connection is unstable, the client aborts the attempt and throws a timeout error.
Why It Happens
Common reasons for a Connection Timeout include:
- The server is offline or behind a firewall.
- Incorrect DNS resolution — the domain name cannot be translated to an IP address.
- Network congestion or a slow proxy between client and server.
- Wrong port number or blocked port.
Example: Setting Connection Timeout in Java
URL url = new URL("https://api.example.com/data");
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setConnectTimeout(10000); // 10 seconds
connection.setReadTimeout(15000); // 15 seconds
connection.connect();In the given client-server connection example:
- If the connection isn’t established within 10 seconds, an error is thrown.
- Once connected, it waits up to 15 seconds for the response.
Error message example:
java.net.ConnectException: Connection timed out: connectHow to Prevent It
- Ensure the server is reachable and not blocked by firewalls.
- Use a retry mechanism for transient network failures.
- Keep Connection Timeout short (5–10 seconds) to avoid long waiting periods.

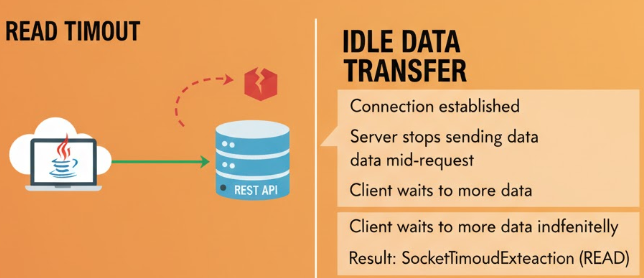

2. Understanding Read Timeout in Depth
What Is Read Timeout?
The Read Timeout defines the time to the client waits for a server response after successfully establishing a connection with the server. It does not include the connection time, it only the waiting time for data to arrive from the server to the client.
If the server takes longer than expected to respond (perhaps because it’s processing a large dataset or facing performance issues), the client terminates the connection and throws a read timeout error at client end.
Example: Setting Read Timeout in Spring Boot (RestTemplate)
RestTemplate restTemplate = new RestTemplateBuilder()
.setConnectTimeout(Duration.ofSeconds(10))
.setReadTimeout(Duration.ofSeconds(30))
.build();
String response = restTemplate.getForObject("https://api.example.com/data", String.class);Here:
- Connection Timeout = 10 seconds
- Read Timeout = 30 seconds
If the server takes longer than 30 seconds to send any data, the request will fail with below exception:
java.net.SocketTimeoutException: Read timed outWhy It Happens
There could be multiple causes for response delay:
- The server is processing a heavy request (e.g., complex SQL query).
- The response payload is very large.
- The network bandwidth between client and server is low.
- The server application is overloaded and slow to respond.
3. Timeouts in REST APIs
Timeouts are vital in REST APIs, where frequent data exchange occurs between two or more microservices or external systems.
- Connection Timeout ensures your application doesn’t keep trying to reach an unavailable service.
- Read Timeout prevents the application from waiting indefinitely for a slow or stuck backend process.
In distributed systems, correctly setting timeouts helps avoid cascading failures, where one slow service slows down the complete chain of requests.
4. Common Timeout Errors Explained
| Error Message | Meaning | Type |
|---|---|---|
java.net.ConnectException: Connection timed out | Could not reach the server. | Connection Timeout |
java.net.SocketTimeoutException: Read timed out | Server took too long to respond. | Read Timeout |
javax.net.ssl.SSLHandshakeException | SSL handshake failed. | Connection Timeout |
IOException: timeout (OkHttp) | Response data took too long to arrive. | Read Timeout |
These messages indicate where exactly the communication failed, helping you debug faster.
5. Configuring Timeouts in OkHttp (Modern Java HTTP Client)
OkHttp is a popular HTTP client in Java and Android development platform. It provides granular control over different timeout settings.
OkHttpClient client = new OkHttpClient.Builder()
.connectTimeout(10, TimeUnit.SECONDS)
.readTimeout(30, TimeUnit.SECONDS)
.writeTimeout(15, TimeUnit.SECONDS)
.build();Explanation
- connectTimeout: Maximum time to open a connection from client to server.
- readTimeout: Maximum time to wait for server data response.
- writeTimeout: Maximum time allowed for sending data to the server.
Each timeout serves a perform the specific process and a unique role to ensure stability at every stage of the HTTP transaction.
6. Timeout Configuration in Spring WebClient (Reactive Programming)
For modern, non-blocking applications built on Spring WebFlux, you can configure WebClient timeouts as follows:
WebClient webClient = WebClient.builder()
.baseUrl("https://api.example.com")
.clientConnector(
new ReactorClientHttpConnector(
HttpClient.create()
.responseTimeout(Duration.ofSeconds(30))
.option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 10000)
)
)
.build();On the WebClient, the time parameters are initialized with ReactorClientHttpConnector:
- Connection Timeout: 10 seconds
- Response Timeout: 30 seconds
This approach provides the timeout control for reactive and asynchronous applications. For heavy load, it ensures that the services are responsive.
7. Best Practices for Setting Timeout Values
- Use realistic values:
- Connection Timeout: 5 – 10 seconds
- Read Timeout: 15 – 60 seconds, it depends on the API response time.
- Add retry logic:
Apply an exponential backoff strategy to transient network errors, progressively increasing the wait time between retries to reduce load and improve the chances of success. - Implement Circuit Breakers (e.g., Resilience4j, Hystrix):
Stops continuous calls to an unresponsive service, preventing failures from propagating across the system. - Use asynchronous calls:
Avoid blocking threads while waiting for a slow response. - Log timeout incidents:
Track timeout occurrences for performance tuning and diagnostics. - Avoid setting timeouts too high:
Long timeouts can make your application appear frozen to users.
8. The Impact of Timeout Settings on User Experience
Timeouts directly influence how users perceive your application’s performance.
- A short Connection Timeout ensures that if the server is unreachable, the app quickly retries or informs the user.
- A balanced Read Timeout gives the server enough time to process requests without making users wait unnecessarily.
In modern applications, milliseconds can make the difference between a smooth user experience and a frustrating timeout error message. Setting timeouts too aggressively can lead to false errors, while being too generous can make the system feel unresponsive.
9. Real-World Case Study: Fixing Checkout Timeouts
A global e-commerce platform faced frequent “Read timed out” errors during checkout.
Root Cause:
- A database query calculating discounts took 45+ seconds.
- Read Timeout in the API client was configured to only 30 seconds.
Solution:
- Optimized the discount query and used caching.
- Increased Read Timeout to 60 seconds temporarily.
- Added monitoring and alerting for API response times.
Outcome:
- Timeout errors dropped by 95%.
- Checkout success rate improved significantly.
- Overall system responsiveness increased due to caching and query optimization.
10. Conclusion
Understanding the differences between Connection Timeout and Read Timeout is essential for building stable, fast, and fault-tolerant applications.
- Connection Timeout defines the time an application can wait to establish a connection with server.
- Read Timeout defines the time to wait for a server’s response after the successful connection is established.
Both are safety mechanisms, one for connectivity, the other for response latency. Properly tuning these values ensures that your applications remain responsive, efficient, and user-friendly, even under unpredictable network bandwidth and conditions.
Also, you can explore about Spring Framework:
- Spring Framework Deep Dive: Understanding Beans vs. Components
- Protobuf and gRPC with Spring Boot: A Complete Guide
- Spring Framework Introduction: The Developer Overview
Frequently Asked Questions (FAQ)
1. What is the difference between Read Timeout and Response Timeout?
In the client application, a Read Timeout measures the wait time for incoming data packets, while a Response Timeout represents the total allowed time duration for receiving the full response.
2. Are timeouts controlled by the client or server?
- The client and server both can have timeout settings.
- Clients can configure the Connection and Read timeouts, while servers control Request and Idle timeouts.
3. What happens if timeout values are too high?
If the timeout values are too high, then the application may appear frozen or hang for the long periods before showing an error message.
4. How do I choose optimal timeout values?
Monitor the application’s average API response times and add a buffer (20–30%) as your timeout value. This configuration ensures flexibility without over-waiting.
5. Do all programming languages support timeouts?
Yes. All major programming languages, Java, Python, Go, JavaScript, and C#, support configurable timeout settings, though the syntax may differ.
